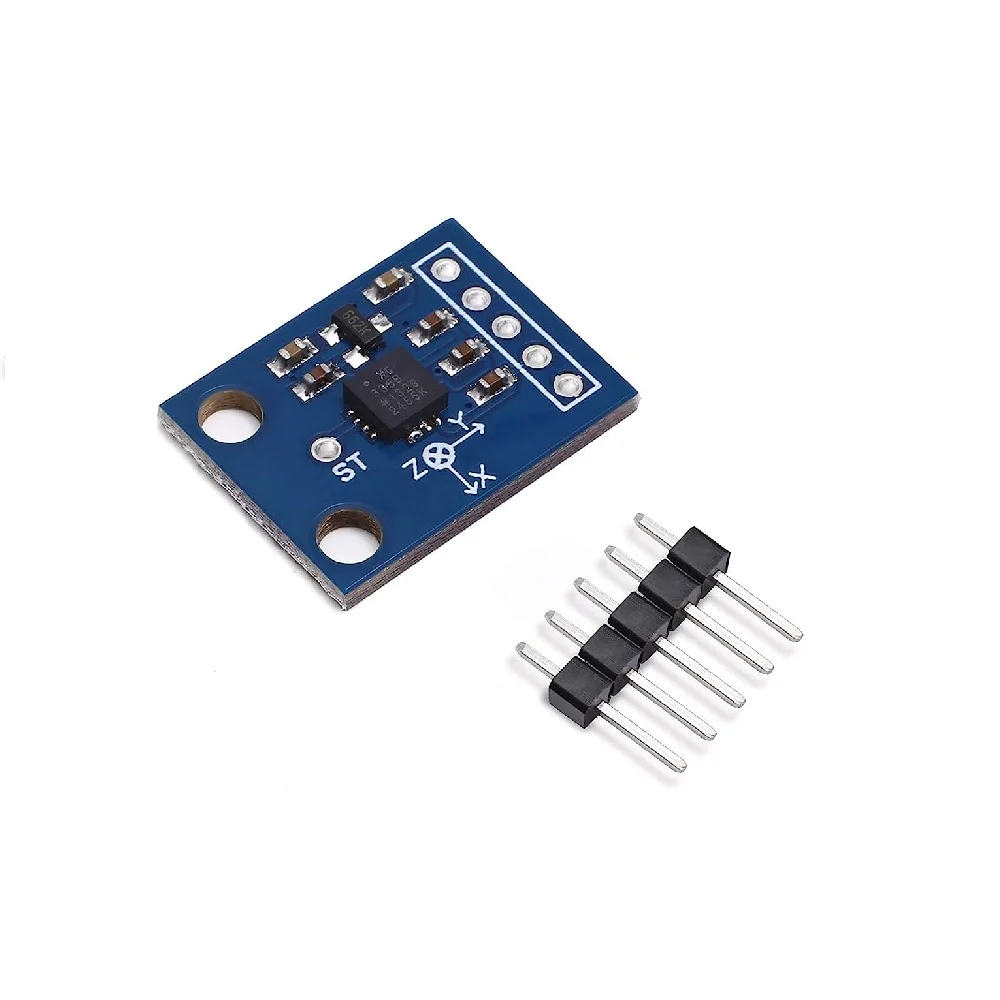

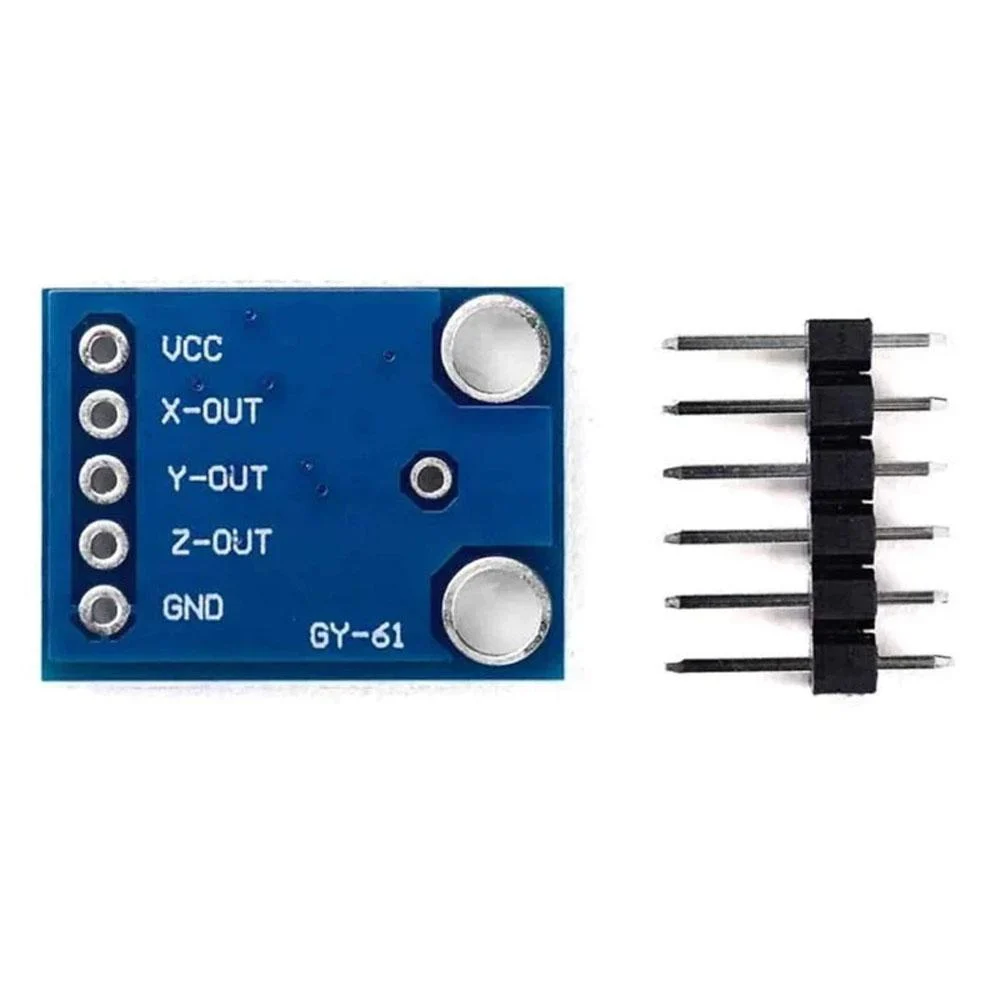

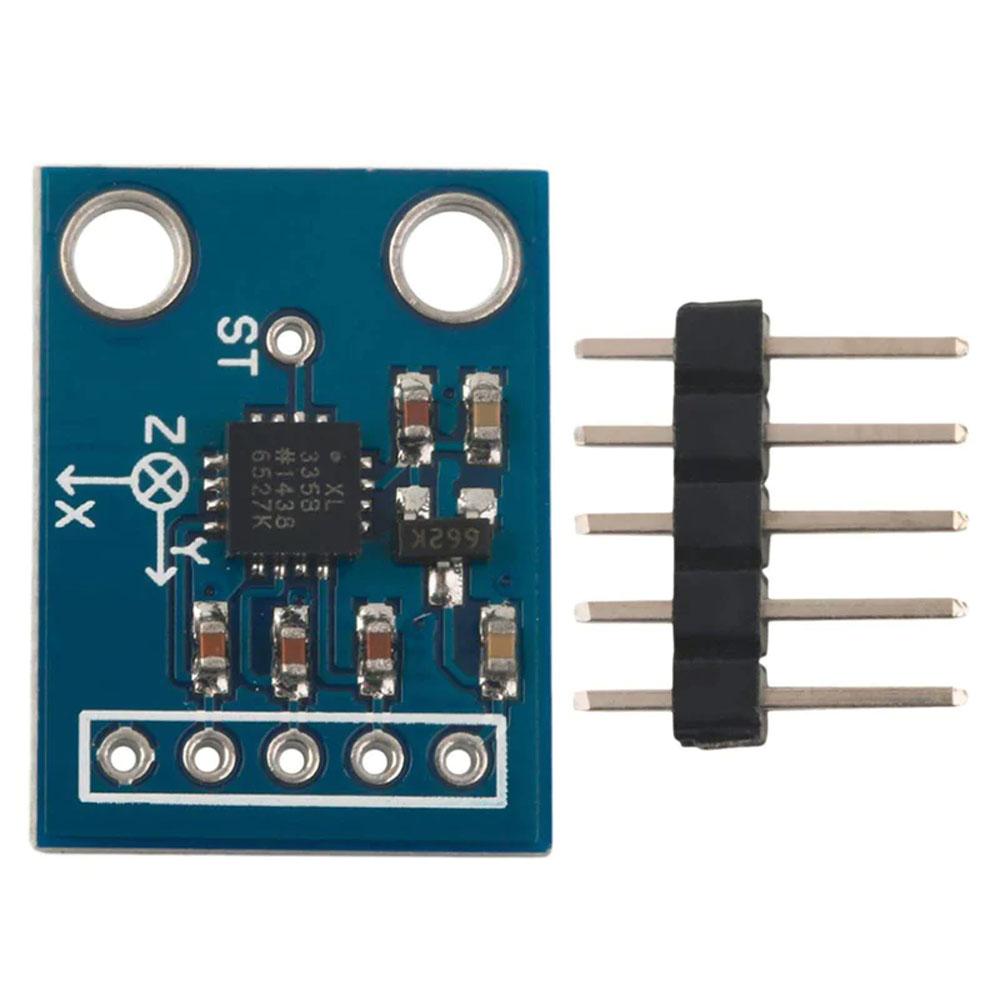

ADXL335 Accelerometer Analog XYZ axis

The user selects the bandwidth of the accelerometer using the C_X, C_Y, and C_Z capacitors at the X_OUT, Y_OUT, and Z_OUT pins. Bandwidths can be selected to suit the application, with a range of 0.5 Hz to 1600 Hz for X and Y axes, and a range of 0.5 Hz to 550 Hz for the Z-axis.

The ADXL335 is available in a small, low profile, 4 mm × 4 mm × 1.45 mm, 16-lead, plastic lead frame chip scale package (LFCSP_LQ).
