Specifications:
• Current Range: 0 to 5A AC
• Rated Input Current: 5A AC
• Output Voltage: 0 to 1V AC (proportional to the input current)
• Turn Ratio: 1000:1 (primary to secondary winding ratio)
• Accuracy Class: 0.5
• Frequency Range: 50Hz to 60Hz
• Core Material: High-quality ferrite core
• Construction: Epoxy encapsulated for durability and reliability
• Mounting: PCB mountable with through-hole pins
• Dimensions:
• Width: 17mm
• Height: 13mm
• Depth: 12mm
• Weight: Approximately 10g
Description

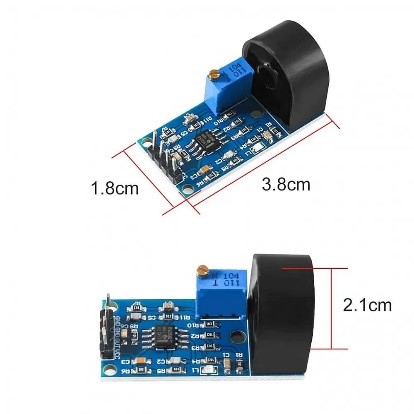

This AC current sensor module is based on ZMCT103C PCB mount mini current transformer. This module provides a direct analog output which is proportional to the input current. ZMCT103C AC current sensor Module can be easily interfaced to Micro-controller or Arduino.
Package Includes :
1 x ZMCT103C 5A Range Single-Phase AC Current Transformer Sensor Module
